Trading Tip:
Alan Square
Alan Kelland's Box Trading Method

A draw tool growing in popularity is the Alan Square, named after its inventor Alan Kelland.  Alan's method is first and foremost price action.  The square serves as a structure to create

  • Opportunities
  • Targets and
  • Protection

The most important aspects are to look for only the best quality setups, focus on identifying follow through bars, and never fade a zone (i.e., never sell a support zone, never buy a resistance zone).

Background

Alan developed his methods trading the ten-minute all-sessions Dow Jones Index futures (YM contract).  This article and the trading strategies described reflects his work using that instrument.  They are suggested uses only and as such are not a complete compilation of all his methods.  However, traders have successfully applied the square to the S&P futures, DAX, Crude Oil, Euro, Bund, Bond, Russell and even stocks.  Similarly, while the method is geared towards 10-minute bars, Alan has also used the square on various intra-day time frames and Daily charts.  You are encouraged to experiment and find what works for you.

Though Alan does not use indicators (e.g., MACD, Stochastic, etc), many traders do and have added them to their charts.  Price action strategies that Alan has shared to take advantage of these opportunities, protections, and targets are summarized in this article.

Components

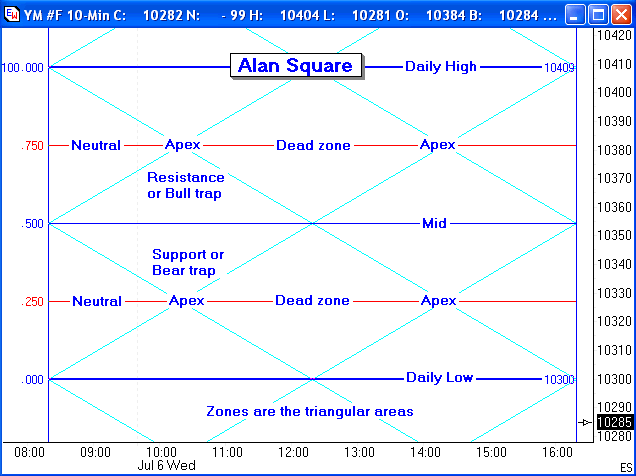

The major components of the Alan Square are:

1) Angulars

  • a) Major - Up and Down angulars from the High, Low, and square Midpoint.
  • b) Minor - Up and Down angulars parallel to the Major, but from the 25% and 75% quartiles.

    Note: Only Major angulars create opportunities.  Minor angulars are primarily used for protection.

2) Quartiles

  • Yesterdays Low - 0% level  (See below for how to determine Daily High and Daily Low)
  • Yesterday’s High - 100% level
  • Midpoint - 50% of yesterday’s Daily High and Daily Low
  • Quartiles 25% and 75% of yesterday’s High-Low range
  • Extensions (125% to 200% or more of High-Low range)

3) Apexes

  • First apex at 10:20 Eastern time zone (ET)
  • Second apex at 14.10 Eastern time zone

    Note: Angulars do cross at 12:20 ET, but as it is the center of the Dead Zone, these apexes are second in importance for their timing value.

4) Zones

  • Support Zone (SZ)
  • Resistance Zone (RZ)
  • Neutral Zone
  • Dead Zone (DZ)

Of all the components, the angulars are the most important.  Horizontals serve mainly to create zones and targets.  The zones arise from the intersection of the angulars and horizontals and are used to create opportunities through the support and resistance nature of the angulars.  The apexes on either side of the DZ, at 10:20 ET and 14:10 ET create price-time opportunities.

Price as it moves through the square offers trading opportunities primarily through use of the angulars and zones, and at times the quartiles, as described later in the strategies section. Examples are follow-through (FT) bars, violations and obligations, 2Z, VBT, and apex splitters.

One important aspect of the Alan Square is that it tells the trader where price did not, and cannot, go.

Start and End Times of the Alan Square

The standard square “Chart1” spans the pre-open through regular trading hours (RTH) session. It starts at 08:20 Eastern Time (ET), ie, NYC time, and ends at 16:20 ET.  It takes the highest High and lowest Low from 08:00 ET of the prior day to 08:00 ET of the present day.

There is also a “Chart2” square that spans the entire Globex and RTH sessions. This will be referred to in this document as the alternate square.  For the YM, this starts at 20:10 ET and ends at 17:.00 ET.

Alan uses a four-day rotation method that he calls PVAC, an acronym generally standing for the nature of the price action likely to be encountered on those days.  PVAC is described in more detail in the PVAC section.

Construction Methods

There are various ways to draw the Alan Square.  The implementation of the Alan Square in Ensign Windows is just one more of many reasons to switch to Ensign.  Those who do not use Ensign can still draw the square 'the old fashioned way', how Alan drew his square for ten years prior to his getting Ensign Windows.  The last two methods can be adapted by non-Ensign users to manually draw an Alan Square.  Click on one of these excellent links for instructions.

Helpful Studies, DYOS, & Templates

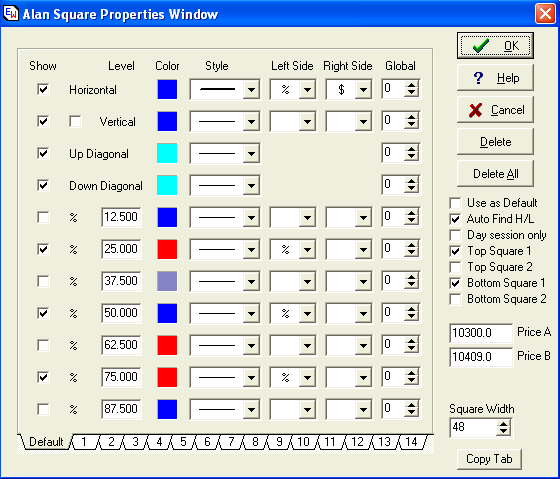

Traders have come up with a number of handy DYOS (Design Your Own Study, unique to Ensign) that help them. These DYOS are provided as templates. Traders should be knowledgeable about how to download and apply them and are referred to the Ensign Help pages for further reading.

The following templates are current as of 27 Jun 2005.  Right Click and Save to an Ensign Templates folder.

Also see dacharts.com templates page.  Here is a list of trading hours for various markets   (thanks sputnik, current as of June 2005)

Price Action Strategies

Price action is viewed by Alan in many ways, but to keep it simple, there are two areas of focus: bar relationships to nearby bars and larger pattern completions (targets).

As price moves across the square's zones and angulars, the push-pull and emotional extremes can be exploited by the trader when viewed as territory gained or lost, proximity areas of protection or open areas of exposure, and pattern completion targets.

The Angulars, Bars, and Zone ideas will be presented first.  However, of all the strategies, learning to identify quality follow-through (FT) bars is the most important, followed by Violations.

FTs and Violations will over-ride, or at worst 'shade' the broadly general 'reads' of angulars, bars, and zones.  If you plan to use this method, your time would be well spent studying the FT bar concept.

1) Early Read of Chart

The alternate Alan Square that spans the Globex session can be used as an early read for the standard Alan Square.

Once the standard square is in place (after 8.20, quickly assess Bar1, and then, Bar2 characteristics using these guidelines:

  • Proximity of Bar1 to nearby angulars and horizontals
  • The placement Bar2
    • Above, below, or through the H, L, or Mid
    • If through the High, Low, or Mid, this creates a 2Z possibility for Bar2
    • Above, below, or through a quartile

2) Angulars

  • The square exists only to draw angulars (meaning, angulars are the most important part of the square)
  • Trade short under Down Angulars, especially above the 75% quartile
  • Trade long above Up Angulars, especially below the 25% quartile
  • Price proximity of an angular when in a trade provides a price level for protection
  • The further from the angulars price goes, the more your trade is exposed and lacking protection.
  • Price riding the top of a down angular will be agonizingly slow.
  • Price surfing an up angular targets the end of the line plus one quartile
  • Price crossing the angular targets the exact end of the line
  • Price surfing under an angular, trade at the kisses.
  • 3) Zones

    To recap, there are four zones and two Apexes

    • Support (SZ)
    • Resistance (RZ)
    • Neutral (NZ)
    • Dead Zone (DZ)
    • Apexes (not technically zones, but the meeting point of various zones)

    Within the zones there are close in areas where the square's structure diminishes the potential for rewarding a position taken nearby, i.e., left and right of an apex).

    There are also areas of proximity protection, e.g., a price line where a trader can put his stop and protect his position, such as a major angular.

    The guidelines below are general.  Bear in mind the previous caution that FTs in particular and many times Violations will take precedence.  Incorporate your study of FTs and Violations when using the Zone guidelines.

    Support Zone (SZ)

    • Long as low down in the SZ as price action allows
    • Longs on the right side of a SZ can use the up angular as protection.
    • Generally, do not initiate a short position in a SZ.
    • Bars that break a SZ to the right of an apex creates a VBT (Vacuum Back Targets), discussed below.
    • Bars that break a SZ on the left of an apex fall into an RZ and create a potential to short

    Resistance Zone (RZ)

    • Short as high up in the RZ as price action allows
    • Shorts on the right side of a RZ can use the up angular as protection.
    • Generally, do not initiate a long position in a RZ.
    • Bars that break a RZ the right of an apex create a VBTs (Vacuum Back Targets), discussed below.
    • Bars that break a RZ on the left of an apex rise into a SZ and create a potential to long

    Dead Zone (DZ)

    • As price goes into the Dead Zone, so it will go out of the DZ, i.e.,
      • If it goes into the DZ with a down bias, it will eventually exit with a down bias, or
      • If it goes into the DZ with a up bias, it will eventually exit with a up bias
    • Scalp trades countertrend to the entry into the DZ, i.e.,
      • Scalp shorts high up in the RZ of the DZ, or
      • Scalp longs low down in the SZ of the DZ
    • The maximum number of bars in a DZ is 23
    • Only the primary square (the square created by yesterdays H and L) has a Dead Zone.  The zones in the extension squares are generally treated as typical Support or Resistance.
    • Only the standard square has a DZ, i.e., the alternate square does not have a DZ

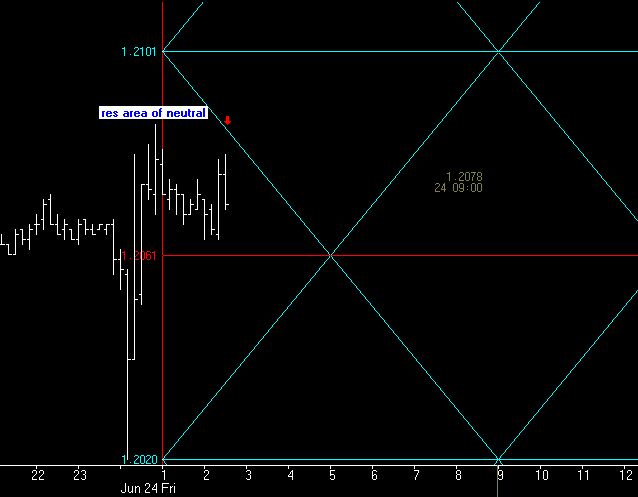

    Neutral Zone (NZ)

    • Refrain from initiating a trade in the NZ until
      • Long when price is low in the SZ of the NZ
      • Short when price is high in the RZ of the NZ

    Apex

    • The two major Apexes are the outside boundaries of the DZ
    • Apexes, being the meeting point of six zones, provide protection left and right.  This is what Alan calls a give-them-no-oxygen area.

    4) Bar 1, Bar 2, Bar 8, and Bar 11

    On the standard square, number the bars starting with Bar 1 at 8:20-8:20 ET, Bar 2 follows, and so forth. There are a total of 47 bars in the day, 23 of which have the potential of being in the DZ, and one of which (Bar 1) is never traded.  Only Bar 1, Bar 2, Bar 8, and Bar 11 carry pattern significance in Alan's method.

    'Fleece bars' are long bars which lure overly-emotional traders in, but quickly reverse to 'fleece' traders of their money. Bar 8, which is the opening 10 minute bar for the RTH session, and Bar 11, which is the end of the first 30 minute opening range, provide such opportunities which Alan Square traders can use.

    Alan will initiate a trade only after the close of the 10 minute bar.  The only exceptions are Bar 2, Bar 8, and Bar 11, which he will trade within its open and close.

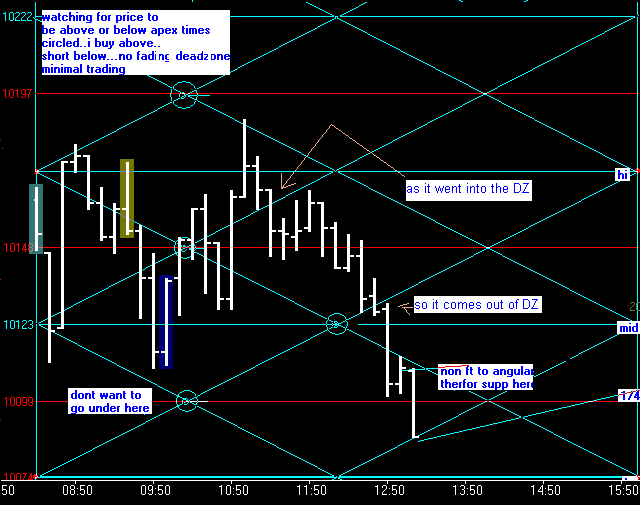

    Bar 1 - the 8:20 ET bar     Example of Bar1

  • Never trade Bar 1
  • Bias the close of the day on Bar 1
  • Trade Bar 1 bias after lunch hour

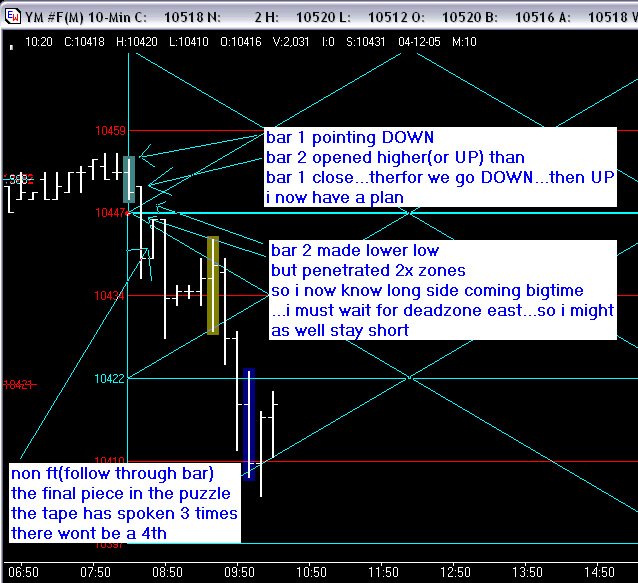

  • Bar 2 - the 8:30-8:40 ET bar     Bar1-Bar2 Example

    Only Bar 2 can “uncheck” Bar 1 (i.e., only Bar 2 can over-ride a read from Bar 1)

    Only Bar 2 Open as it relates to Bar 1 Close is used:

    • Bar 2 Opens above Bar 1 Close, no significance
    • Bar 2 Opens equals Bar 1 Close
      • A initial head fake is likely, so fading the move is a potential
      • May signify that the market will close unchanged from Bar 8 Open
    • Bar 2 Opens below Bar 1 Close,
      • Alan doesn’t wait for the bar to close to initiate a short
      • With one exception, if bar 2 is outside to bar 1, it is generally bullish, whether up or down, so do not short in the first hour.
    • When Bar 2 is a 2Z, price will often return to that price before 14:00 ET

    Bar 8 - the Open Bar, 9:30-9:40 ET

    • Bar 8 has only one rule:   If Bar 8 is at or near the LOD (low of day), Do not short
    • A Bar 8 long is a quick, TMAR trade (Take the Money and Run)

    Bar 11 - The end of the 30m Opening Range, 10:00-10.10 ET     Bar11 HOD Example

    • Alan will not buy a Bar 11 High of Day  (HOD)
    • Treat as a high probability fleece bar at or near HOD (high of day) for a TMAR short
    • Use on V and A days

    5) Territory: Win it, Prove it (FT), Lose it (Violations)

    Winning Territory

    The Alan Square creates many opportunities for price to “win territory” with penetrations, “prove itself” with FT bars, and "give it up" or lose it through violations.

    Territory is won when a bar penetrates an up angular and closes above it in the case of a move up, or when it pierces a down angular and closes below it in the case of a move down. Territory may also be won in a similar fashion with respect to horizontals.

    Having won the territory, price must then “prove itself”.  It does so by immediately printing a follow-through (FT) bar and by maintaining proximity to the angular, or by not violating (giving up) the nearby angular or horizontal.  Territory that is not won will not be defended.

    Follow-Through (FT) Bar     Alan's examples of FT bars

    Traders can study the chart showing the various types of follow through bars and then review prior days charts both statically and in playback to better understand this very important concept.

    In its simplest form, an FT bar is a Higher High (HH) and a Higher Low (HL) (or a Lower High (LH) and Lower Low ( LL)) in the direction of a trend.  However, when a bar creates a HH and a HL, but the HL violates its adjacent angular or horizontal, that is not a FT bar (a non FT bar) as that violation gave up previously won territory.

    Proximity

    Proximity to an angular is quite strict.  Price must stay close to the angular, but must not penetrate it.  When price is still correctly trending relative to the nearby angular, but the slope of the trend is creating distance from it, minor angulars may be placed to protect the trend.  However, the minor angulars do not in themselves create opportunities, they serve only to protect.

    Ranking FT Bars

    An FT bar takes precedence over other obligations such as the 2Z, Apex Splitter, or VBTs.

    Territory won and confirmed by an FT bar can be ranked in importance as follows:

    • Won at an Angular
    • Won at yesterday’s High or Low
    • Won at the Mid
    • Won at the Quartiles

    If nothing has been won, there is nothing to protect.

    Quality of FT Bar

    A quality follow through bar going up will have a HH and a HL and will close in the higher part of its bar. Likewise a quality FT bar going down will have a LH and a LL and will close in the lower part of its bar.

    A quality FT through a quartile is stating that the next quartile in the direction of the trend (i.e., next down quartile or next up quartile) can be expected as a target.

    An FT bar is checked when the move continues in the direction of the trend without violation of the FT bar.  It becomes unchecked when the low of the up FT bar is taken (or the high of a down FT bar is taken), i.e., the FT bar is no longer predictive.

    Where people get trapped is they see a lousy (poor quality) FT bar and immediately enter.  The market has spoken, but has not activated them.  It is saying to expect lousy follow through.

    A pattern completion target can be set by following the angular that was won to its endpoint on the square.

    Alan's examples of hypothetical FT bars
    Examples of FT
    Example of FT with Target

    Violations

    After having won territory, should a bar then pierce the angular or horizontal just won, a violation is created and price "gives up" the territory.

    In the case of an angular, the use of that angular to provide protection is not to be trusted.  In the case of a horizontal, it is saying that price does not want to go into that territory, or that if it does, it will not defend it.

    Additionally, if that violation was also a VBT (see VBT section), this should be noted on the chart as while the move may continue, odds of it failing (intra-day) are established by that VBT.

    6) Band Targets     Example of Bands

    Price will often use the space between like angulars as a channel, stepping down or up the channel successively through the quartiles. Alan calls these bands.

    When a channel gets violated, the pattern completion is the exact end of the violated line. When a channel has not been violated, the pattern target completion is a quartile extension of that line, extended each time another band is won.

    7) Vacuum Back Targets (VBTs)     Example of VBTs

    If an up bar breaks up through a down angular or if a down bar breaks down through an up angular, the price where the bar cut through the angular creates a VBT.  When this happens, a short horizontal line is placed at that price point, which is now a return target for price.

    VBTs exist to provide price targets.  They are not themselves entries.  When the VBT is created higher up in a resistance zone, or lower down in a support zone, the greater the potential for a high quality return target.  The lower the quality of a subsequent entry, the more at risk is meeting the VBT target.  Keep in mind the idea of proximity providing protection and "open space" providing exposure.

    The VBT remains in effect until a subsequent price bar prints the VBT price, at which point the VBT is considered “checked”, i.e. closed, and no longer in play. The very next bar cannot uncheck a VBT.

    8) 1-2-3 and 4th, a.k.a, “Fade the Fourth Whatever”     Example of 1234 counts

    The 123 pattern is a typical technical analysis pattern.  The principle is simple: having conditioned traders to anticipate a successful test of a prior extreme three times, the forth attempt will be taken by the inexperienced traders and faded by those who are aware of the pattern.

    Alan does not count HH or LL swing-to-swing, but rather bar-to-bar.  Fading a fourth HH would thus be the fourth higher high of a bar sequence.  However, the fourth HH of a swing sequence is also faded. Similarly, on trending days, fade the fourth band move.

    9) 2-Zedder (2Z)     Example of 2Z and targets

    A 2Z is a bar that opens in one zone, travels through another, and closes in a third zone. The 2Z bar creates an obligation, i.e., price will return to test the open.

    10) Apex Splitter     Example of Apex Splitter

    An Apex Splitter is a bar that traverses one of the two major Apexes. Expect a reversal within 30m (3 bars).

    Miscellaneous

    • Once-Twice-Thrice
    • Look for quality FT bars and trade only the best setups
    • Unchecking a bar is not a signal, it is a warning
    • If a line is violated twice, odds are it will be violated again.
    • After a significant reaction to news, fade the move after 39 minutes of the reaction to the news and anticipate a pullback to 50% of the move
    • The alternate Alan Square is useful on Mondays and Fridays.
    • 80% of Friday’s will hit the midpoint (Example)
    • Up days typically make move before noon, down days after 14.30ET
    • For the U (September contract) only
        --  fade an upside move of 60-minutes or ~75 points
        --  fade a sixth HH and ~75 points
    • Use a major (or minor) angular to manage your trades. When a line or zone is won, trail the stop, surrender nothing
    • ZB (US Bond) likes zones, times, and quartiles
    • Euro is all about symmetry. Likes 20 minutes after news, but best are angulars right of whole session chart, above or below High or Low
    • The Market’s duty is to inform with price action.
    • No FT, no VBTs, no obligations, no mbh
    • If a chart begins eroding profit, exit.
    • As a trader, look for market distress and identify quality exhaustion points
    • We owe it to ourselves to follow the money.  Trade the trending markets.

    PVAC Days and Alan's Method

    PVAC is the acronym Alan uses for a four-day rotation cycle. The cycle itself is circularly continuous every days of the week, forever, including every holiday.

    Thus if, for instance, Monday was a P, Tuesday is V, Wednesday is A, Thursday is C. At this point the cycle repeats, with Friday being P, Saturday being V, Sunday being A, and the following Monday being C.

    One must first determine a valid and confirmed “PVAC” day to start their cycle properly. The easiest way to do that is to apply the PVAC template, which is coded to do the repeat cycle using the Ensign internal calendar. One could also make a small calendar and color each day after a known PVAC day is determined.

    Having started, the cycle never changes. While each day tends to have the characteristics shown below, like all cycle tools, there are inversions, which will last a cycle or at times even more, and have reasonable odds of inverting regularly.

    A trader who wants to incorporate a four-day rotation cycle into their work is encouraged to study for themselves whether this adds value.

    Bonnie Hill's Cycles pages may be of use to those who want to learn more about rotation cycles.

    The Alan's Lessons page at dacharts.com has various annotated examples of price action during specific PVAC days. The links below are to dacharts pages of PVAC day examples.

    Day Color Characteristics
    C-Day Yellow
    • Consolidation day, aka 'consoly' day.  It may not chop, but it may have an accumulation or distribution quality to the action
    • Trade often and trade fast
    • Pattern traders fade 4HHs and 4LLs with backfill/pullbacks 3 bars later
    • Apexes and angulars tend to have less importance
    • Numerical traders trade after Bar8 open and use support one horizontal below, resistance one horizontal above
    • C day opens often at the 25%
    • The afternoon action tends to be opposite to the morning action
    P-day Green
    • Often a trend day.  Find the trend and enter it.
    • Often opens at the 75%
    • Trade P-days against a quartile
    • Watch for price to be above/below the first apex: buy above or sell below
    • Do not fade dead zone, minimal trading
    V-Day Red
    • Closes well for bulls
    • Use your fleece bars Bar8 and Bar11
    • Bar8 open often a V-day return target
    • 'V' return comes early in day in bear moves, late in day in bullish moves
    A-day Blue
    • Closes poorly for bulls
    • Use your fleece bars 8 and 11
    • Generally 'A' shaped, but may have a kick-leg after 3pm

    Other Uses of the Alan Square

    Alan uses the square various ways on the Daily chart as well as with other time frames.  Here are some examples.

    Traders have used the Alan Square in many ways.  Here is a sampling of their ideas:

    Appreciation is extended to Alan Kelland, Ana Maria Gallo, Judy MacKeigan, and other Alan Square traders for use of the materials in this newsletter.  For more information about Alan's methods and using the Alan Square, please join the Coffee House chat room in the Ensign chat rooms and the Coffee House Ventri1o voice room.   Many excellent traders patronize these rooms (and the B-Line chat rooms) who use the Alan Square everyday.  Excellent chart examples are posted each day to the http://www.dacharts.com/ web site.


    Copyright © 2008 by Ensign Software, Inc.
